“The KBK single-girder suspended bridge crane features lightweight structure and flexible operation, enabling smooth and flexible material transfer between workstations. Suitable for electronic manufacturing and light duty assembly applications.”
What is KBK Single-Girder Suspended Crane
The KBK single girder suspended crane is a modular lightweight lifting system, typically composed of standard rails, single main girder, travelling trolley, lifting hoist and suspended support structure. Its core characteristics are modular and flexible design, allowing free combination and expansion according to different workshop layouts to adapt to various workstations and production processes.
Compared with conventional light overhead cranes, advantages of the KBK crane system:
Light deadweight, with low requirements on workshop structures
Flexible installation and easy adaptation to production line changes
Smooth operation, suitable for precision handling applications
Compact footprint, improving workshop space utilization
Available in manual or electric operation modes

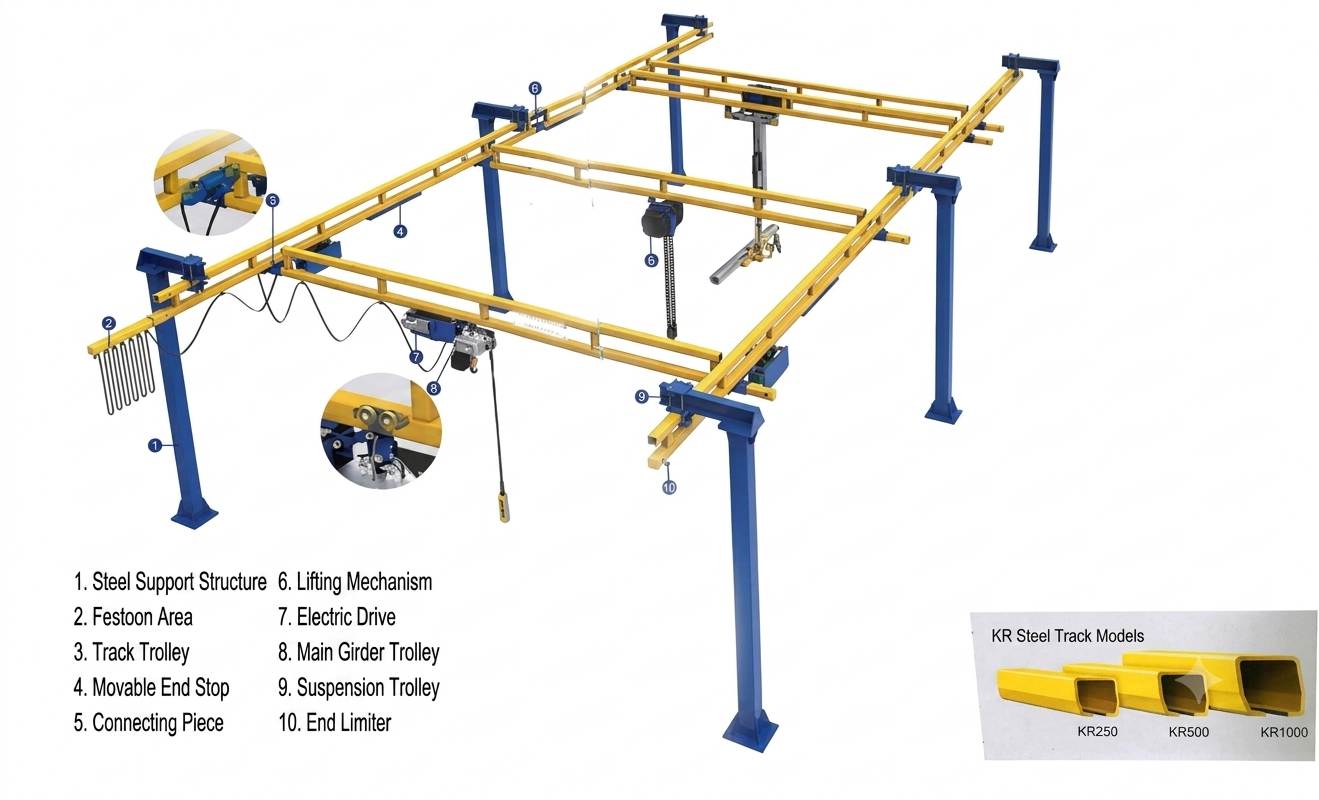

Structural Features and System Advantages of KBK Suspended Bridge Crane

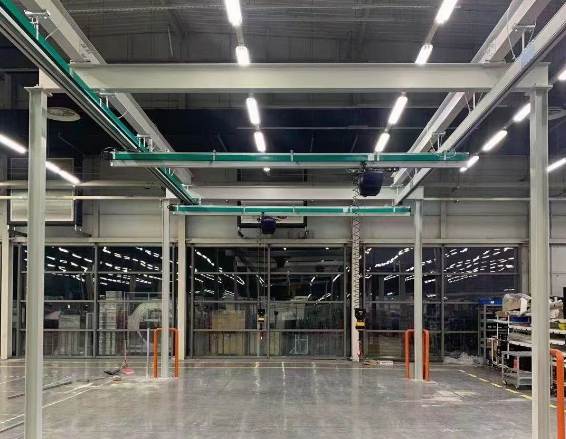

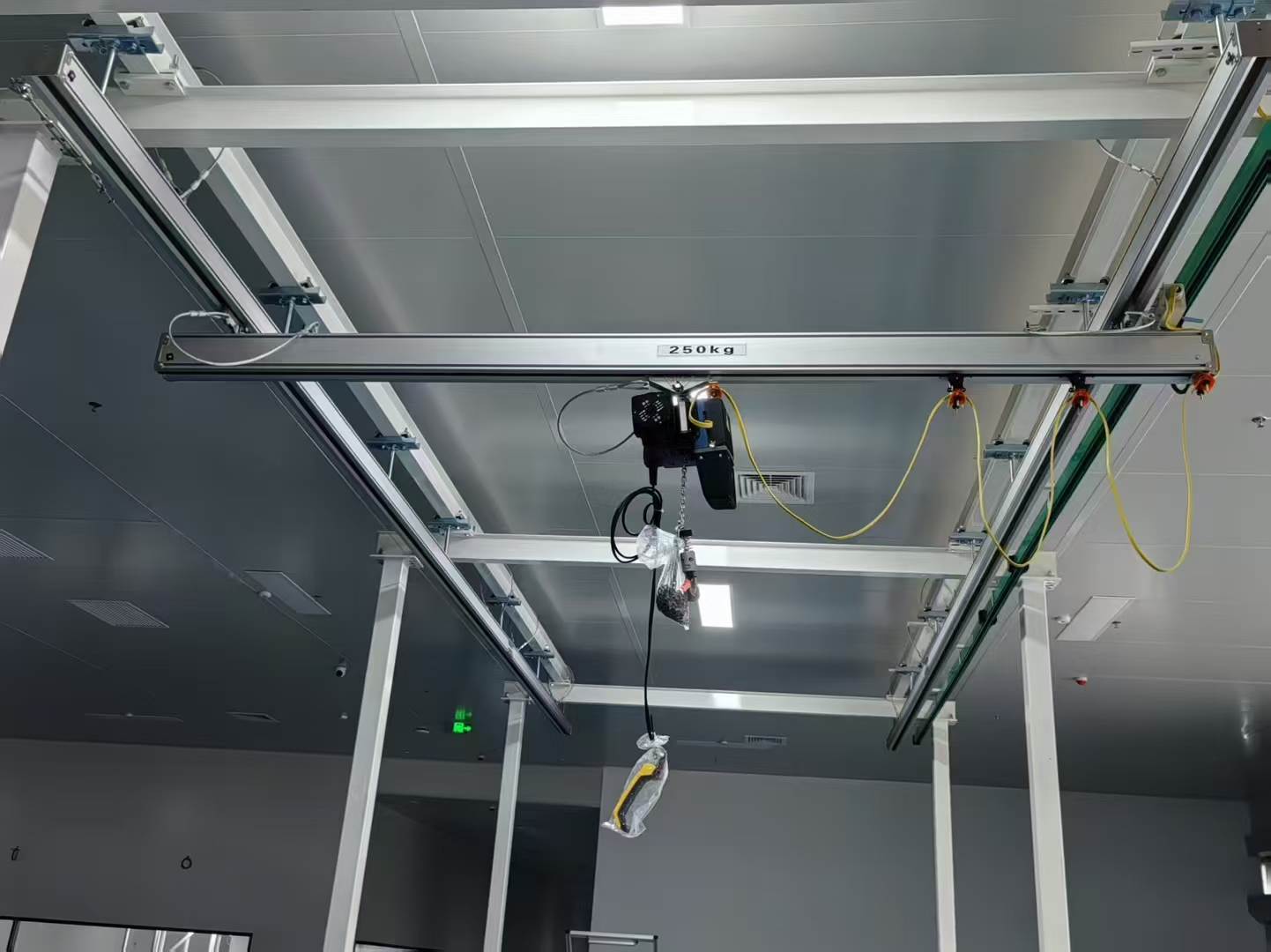

The KBK single girder bridge crane system is composed of modular aluminum alloy rails or steel track components. It is installed in suspended manner under the factory roof or steel structure, enabling flexible three-dimensional movement within the workspace.
Main structural features:
Standard Rail System: Made of cold-rolled profiles or aluminium alloy rails, featuring high strength and low friction for smooth running.
Single-Girder Main Structure: As the primary load-bearing component, the single-girder design can be customized for different spans and load capacities to meet diverse production needs.
Travelling Trolley & Lifting Hoist: The trolley moves smoothly on the rail, while the hoist performs vertical lifting to achieve accurate handling.
Suspension Support System: Mounted overhead on roof or steel structures, with no additional floor space required.
Advantages of the KBK system:
Lightweight structural design with low building load requirements, enabling quick installation in existing workshops without major reconstruction.
The trolley runs smoothly within the track system, enabling point-to-point material transfer, making it ideal for multi-station electronic assembly lines.
The system can be easily expanded or reconfigured to adapt to production line upgrades and layout changes.
When combined with electric hoists or balancing devices, it enables millimeter-level positioning accuracy and reduces manual handling errors.
Applications of KBK Suspension Crane System in Electronic Assembly Lines
Material transfer stations after SMT mounting
Precision electronic component assembly and inspection stations
Semi-finished and finished product handling areas
Centralized handling areas before packaging
Operators can use the lifting system to easily transport PCB trays, electronic enclosures, and lightweight modules between workstations efficiently. Compared with manual handling or floor carts, the KBK crane system significantly shortens handling time, reduces risks of collision and product damage, improves overall production efficiency and yield rate.
Installation and Maintenance Advantages
Modular structure ensures short installation time
Flexible expansion according to production line changes
Simple maintenance with standardized spare parts
Easy integration with automation systems
As an efficient material handling solution for electronic assembly lines, the KBK single girder suspended bridge crane has become an essential equipment in the electronics manufacturing industry due to its lightweight structure, modular design and high precision operation capabilities. It significantly improves material handling efficiency, enhances workspace utilization, and supports flexible production requirements. please feel free to contact us for more product details!
