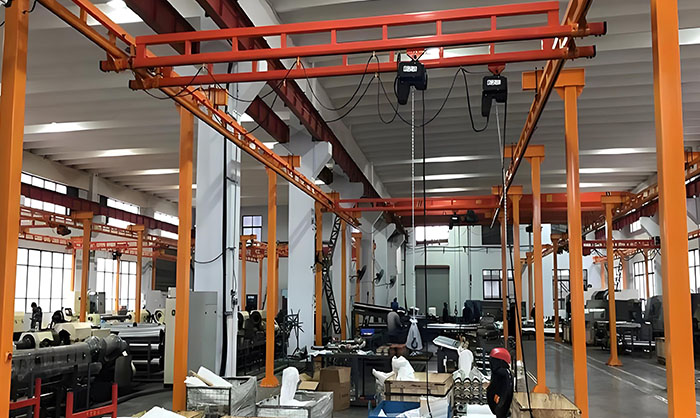

KBK Telescopic Beam Craneis an innovative modular lifting equipment. By adding a retractable cantilever structure under the main beam of the crane, the operating range can be flexibly expanded. Its core feature is that the main beam can be extended in one or two directions (the maximum overhang distance is 2.5 meters), which can bypass obstacles such as columns, ventilation ducts, cables, etc. in the factory, significantly improving space utilization. This design does not require additional column support and can be directly suspended on the steel structure at the top of the building, which is both economical and practical.
Structural and functional characteristics
1. Modular design: KBK telescopic beam crane adopts a standardized KBK track system, which consists of a fixed section and a telescopic section, supporting rapid installation and later expansion. Brand products such as Kangfusen can also adapt to the needs of workshop expansion, and new operating areas can be covered without adding new tracks.
2. Efficient obstacle avoidance capability: The telescopic beam can accurately lift over obstacles, which is particularly suitable for working conditions that are difficult for traditional cranes to cover, such as between pillars and equipment-intensive areas.
3. Load performance: The maximum lifting weight of the KBK telescopic beam crane rail workstation type is 2000kg, and the rail system adopts a non-welded modular structure to ensure the stability of large-span operation.
Application scenarios
1. Suitable for scenes such as automobile manufacturing, warehousing and logistics that need to bypass pipes and heaters;
2. Realize multi-station material handling in a limited space, such as the radiation heater avoidance requirements mentioned in a well-known enterprise case;
3. Used in conjunction with an electric hoist, the KBK telescopic beam crane can complete the installation and maintenance of precision equipment.
Technical advantages
1. The flexible suspension system reduces the load requirements on the plant structure;
2. The aluminum alloy track option is ergonomic and easier to operate;
3. Two installation methods, free-standing or top-suspended, adapt to different plant conditions.
KBK telescopic beam crane equipment has become a key solution to improve the space utilization and handling efficiency of modern industrial workshops through the localization of German KBK technology.
