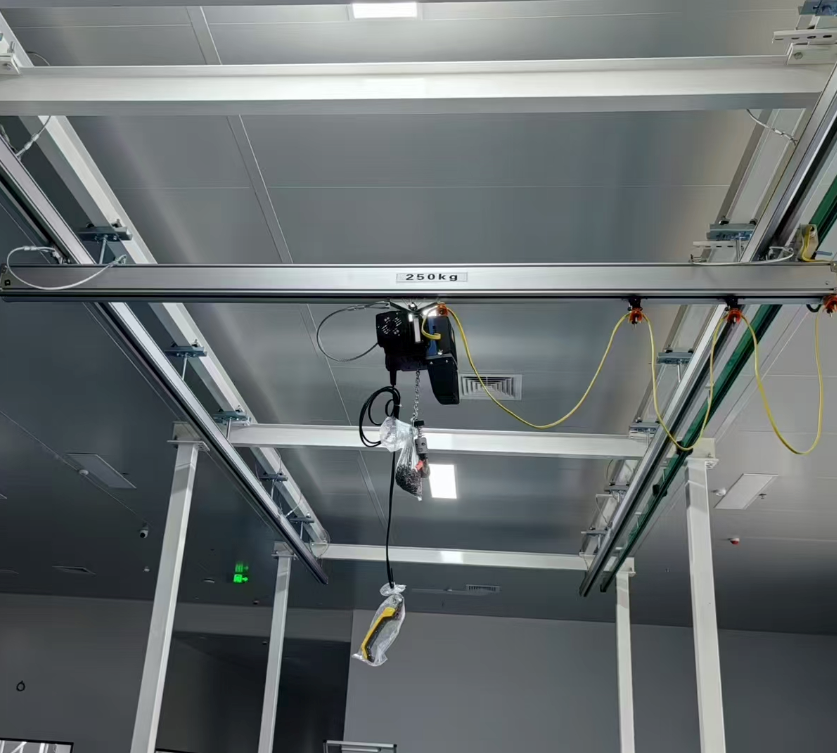

Free Standing KBK Light Suspension Bridge Crane

The free standing KBK light suspension bridge crane is a modular light duty material handling system. Featuring a free standing column support structure, it can be installed without relying on the load-bearing beams of the workshop, making it ideal for retrofitting existing workshops or production environments without lifting points. Combining the advantages of flexible rails and overhead crane structures, this lifting system enables high frequency, short distance and precise material handling, serving as essential equipment for modern intelligent manufacturing and efficient production.

Structure of Free Standing Light Suspension Bridge Crane

Free Standing Support Columns: Made of high strength steel with independent load-bearing capacity, adaptable to various ground conditions.

KBK Rail System: Supports linear, curved and circular layouts to meet complex workstation requirements.

Main Girder Structure: Provides lateral coverage over the handling area.

Travel Trolley: Runs smoothly along rails with low friction resistance and high positioning accuracy.

Lifting Mechanism: Equipped with chain hoist to achieve vertical lifting.

Electrical Control System: Supports manual and remote control operation.

Product Advantages of Free Standing KBK Light Crane

• No reliance on workshop structures; independent load-bearing via columns ensures high installation flexibility.

• Composed of standard components, allowing free expansion or reconstruction of the rail system according to production line changes.

• Designed with low-friction rollers and high-precision rails, featuring low running resistance and easy manual or electric operation.

• Customizable based on load, span, operating environment and other conditions to meet various working scenarios.

• Equipped with multiple safety devices including limit protection and overload protection. Simple structure, low maintenance cost and long service life.

Product Technical Parameters (Customizable)

Application Scenarios

• Material handling in automated production lines

• Multi-station assembly workshops

• Precision equipment handling in electronics and semiconductor workshops

• Automotive parts manufacturing

• Warehousing and logistics sorting system

Customized Solutions

• Rail types (linear / circular / multi-rail)

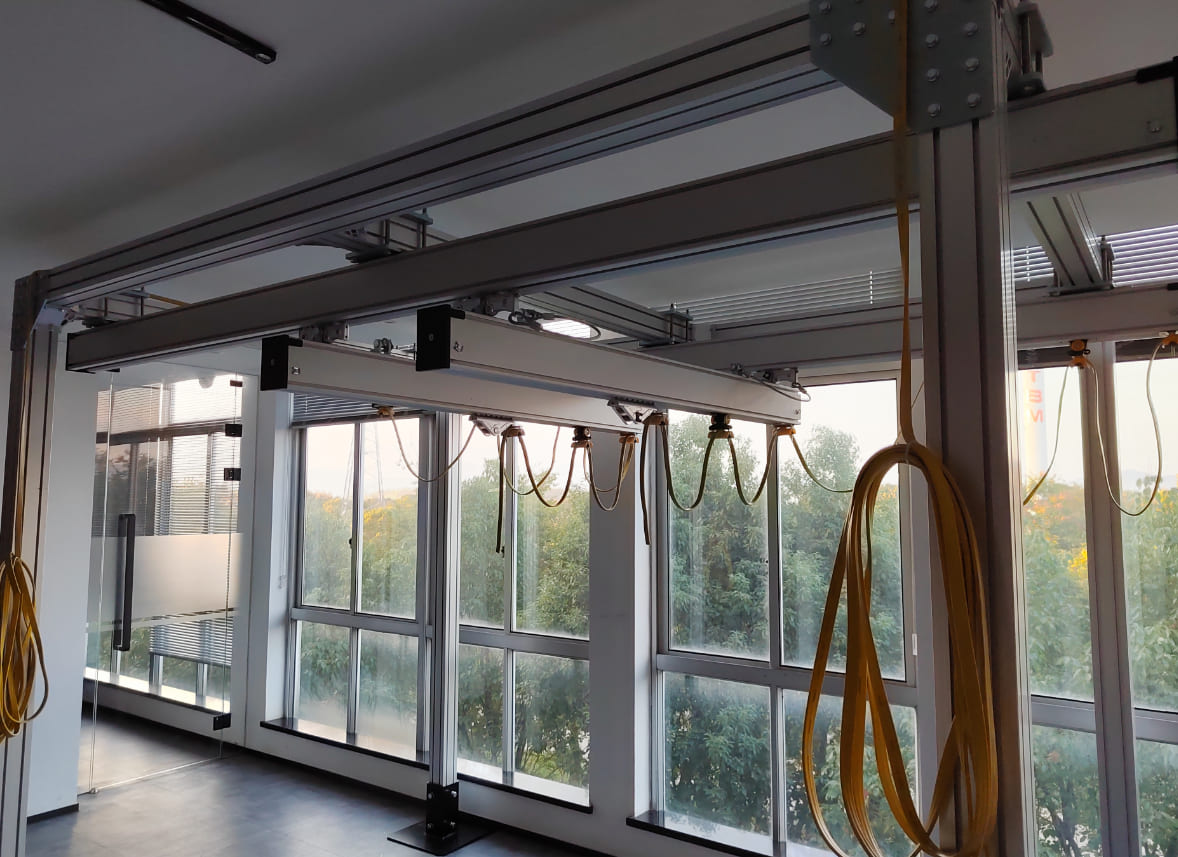

• Structural forms (single girder / double girder)

• Lifting capacity and span design

• Design for special environments such as dust-proof, anti-corrosion and cleanroom applications

If you are looking for a suitable free standing KBK crane system, please feel free to contact us for professional technical support and product quotation. We will provide you with an efficient and safe light duty material handling system.
