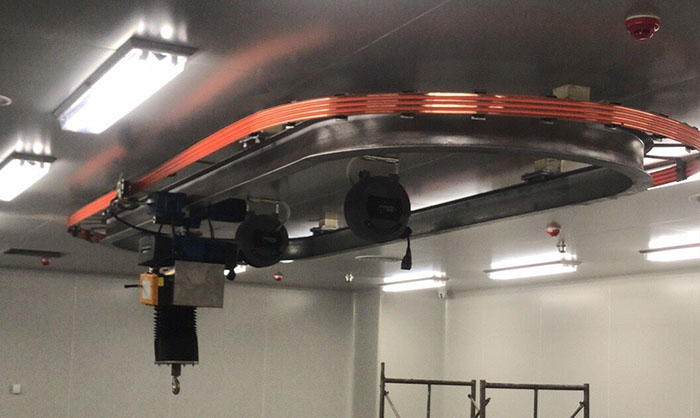

KBK Flexible Ring Track Cranes

KBK flexible ring track cranes are lightweight lifting device based on a modular design. Core feature is the flexible combination of standardized rails, suspension devices, electric hoists and other components to form a ring, straight, or branched track system, enabling efficient aerial material transport.

Modular and flexible design

• Ring Track Layout: By freely splicing standard components such as straight rails, curved rails, and switches, a closed ring system can be constructed, supporting circular conveying and multi-station flow, making it particularly suitable for automated assembly lines.

• Flexible connection: KBK flexible ring track cranes track suspension adopts ball and socket hinge structure, which can absorb the impact force during operation and adapt to flexible support environments such as light steel workshops; but it is necessary to regularly check the bolts to prevent loosening (flexible design may cause deflection and shaking).

Technical parameters and performance

• Load Capacity: Rated load capacity ranges from 100kg to 2000kg, with span typically between 3 and 8 meters. For loads exceeding 500kg or spans exceeding 6 meters, a double-beam structure or electric drive is required to ensure stability.

• Lightweight operation: Track is made of cold-rolled steel or aluminum alloy (the new aluminum alloy track is more corrosion-resistant), equipped with a low-friction trolley, and is easy to push manually; the electric hoist supports smooth start and stop and precise positioning.

Advantages of KBK flexible suspension cranes

• Economical and Efficient: Easy installation (bolt connection) and support for future expansion significantly reduce renovation costs and construction time.

• Safe and Reliable: Standard overload limiters and limit switches, combined with a truss track design, provide operational stability superior to traditional flexible single beams.

• Space optimization: Directly suspended from the factory roof frame, saving ground space; the ring design covers a large working area and reduces dead corners in transportation.

Our custom design service - simply send your technical drawings or specific requirements to our email or leave a message online, and our engineers will provide you with the most suitable KBK light crane solution for your production application.
